The Golden Compass HD offers you a stable, center-wheel-drive platform and an articulating chassis for stability over tough terrain. A bigger, beefier version of the popular Compass Sport, the Compass HD has a 450 lb. weight capacity, yet a modest 20-inch turning radius. It comes standard with a captain’s seat and our exclusive fold-flat seat hinge design for easy transport.
The Compass HD features front and rear height-adjustable seat posts, padded flip-up armrests, an easy-to-use sliding seat bracket and a fully adjustable footplate. With this lineup of features, the Golden Compass HD can take you to

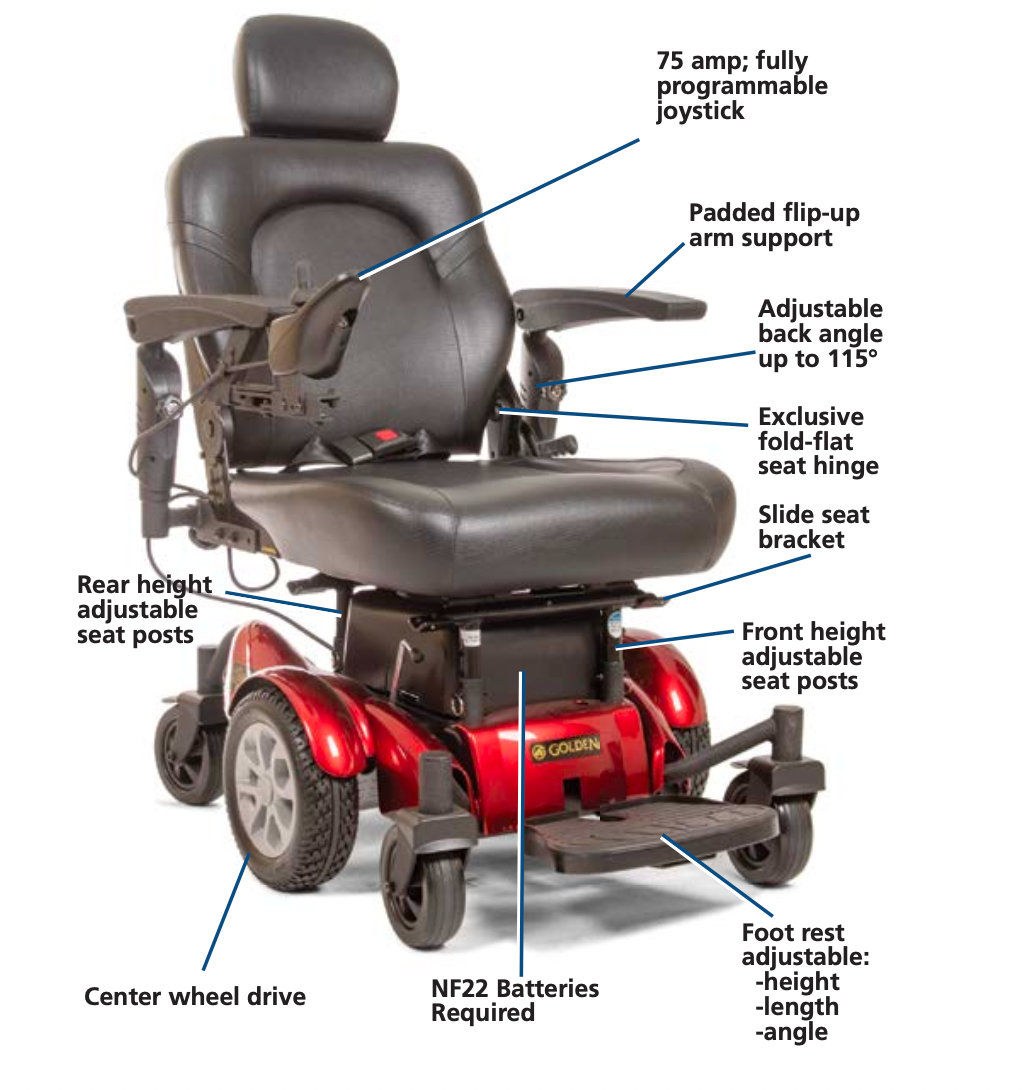

Features:
- Standard captain’s seat with our exclusive fold-flat seat hinge design
- Optional seating includes ProFlex Seat and van/pan seat
- Exclusive slide seat mechanism for easy seat removal and attachment
- 450 lb. weight capacity
- Adjustable head rest and armrests
- 75 amp peak Dynamic Shark controller standard
- Off-board charger
- Accessories available: elevating leg rests, specialty leg supports, swing-away footrests, footplate extender
- Uses 22NF batteries
- Model Number: GP620
Specifications
- Top Speed: 4.00 mph
- Turning Radius: 20.00"
- Ground Clearance: 3.50"
- Heaviest Piece: 101 lbs.
- Maximum Incline Rating: 6 º
- Battery Charge Distance: 12.00 miles
- Drive Type: Mid Wheel Drive
- Foldable: Yes
- Disassembles: No
- Standard Seat: Captain's Seat
- Standard Seat Size: 20” x 20”
- Standard Back Height - no headrest: 21"
- Standard Back Height – w/ headrest: 28.5”
- Maximum Seat to Floor Height: 23"
- Overall Width: 25.00"
- Overall Length: 40"
- Adjustable Angle Footplates: Yes
- Dampening Adjustment: No
- Frame Type: Heavy-duty
- Batteries: 2-NF22
- Batteries Included: Yes
- Battery Charger Type: Off Board
- Drive Wheel Size: 10"
- Caster Size: 6"
- Rear Caster Size: 6"
- Base Weight: 101.00 lbs.
- Standard Seat Weight: 51.00 lbs.
- Battery Pack Weight: 74.00 lbs.
- Weight Without Batteries: 155.00 lbs.
- Tire Type: Foam Filled
Videos
Warranty
• Warranty – Electrical Parts: 13 months
• Warranty – Batteries: 1 year
